<figureGroup>
The <figureGroup> element groups two or more related <figure> elements that may share a single caption or source.
Notes
- A
<figureGroup>requires at least two<figure>elements. For a single image, use<figure>directly. - A shared
<caption>is placed once at the start of the group, before the first figure. - A shared
<source>is placed once at the end of the group, after the last figure. - A
<pagebreak>is allowed between figures inside the group.
Children elements
| Element | Explanation | Required |
|---|---|---|
<title> | Contains the title of the figureGroup. Usually consists of a label and a number. See title. | |
<caption> | The group caption of the complete figureGroup. If a figureGroup has a caption, it must be placed first regardless of position in the print. See caption. | |
<figure> | See figure. |
Examples

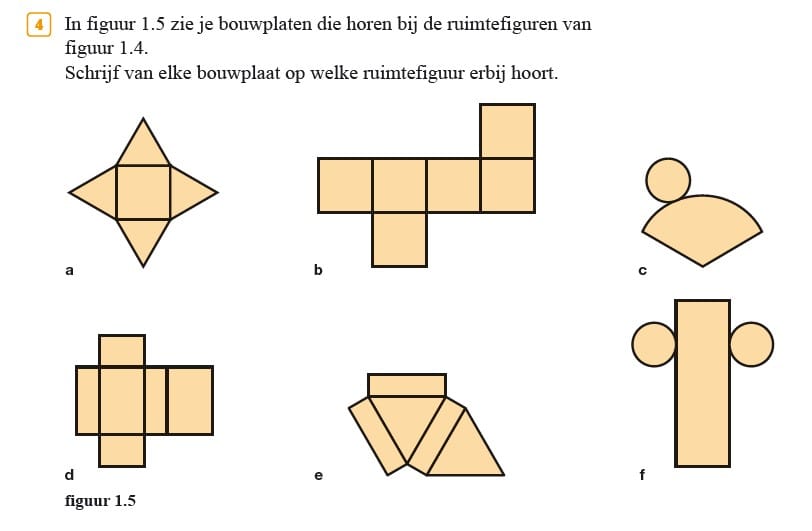

Series of images (1)
<figureGroup>
<title number="1.5">figuur 1.5</title>
<figure>
<img alt="" role="informative" src="/img/000000_p000-1.jpg" type="drawing"/>
<caption>a</caption>
</figure>
<figure>
<img alt="" role="informative" src="/img/000000_p000-2.jpg" type="drawing"/>
<caption>b</caption>
</figure>
<figure>
<img alt="" role="informative" src="/img/000000_p000-3.jpg" type="drawing"/>
<caption>c</caption>
</figure>
<figure>
<img alt="" role="informative" src="/img/000000_p000-4.jpg" type="drawing"/>
<caption>d</caption>
</figure>
<figure>
<img alt="" role="informative" src="/img/000000_p000-5.jpg" type="drawing"/>
<caption>e</caption>
</figure>
<figure>
<img alt="" role="informative" src="/img/000000_p000-6.jpg" type="drawing"/>
<caption>f</caption>
</figure>

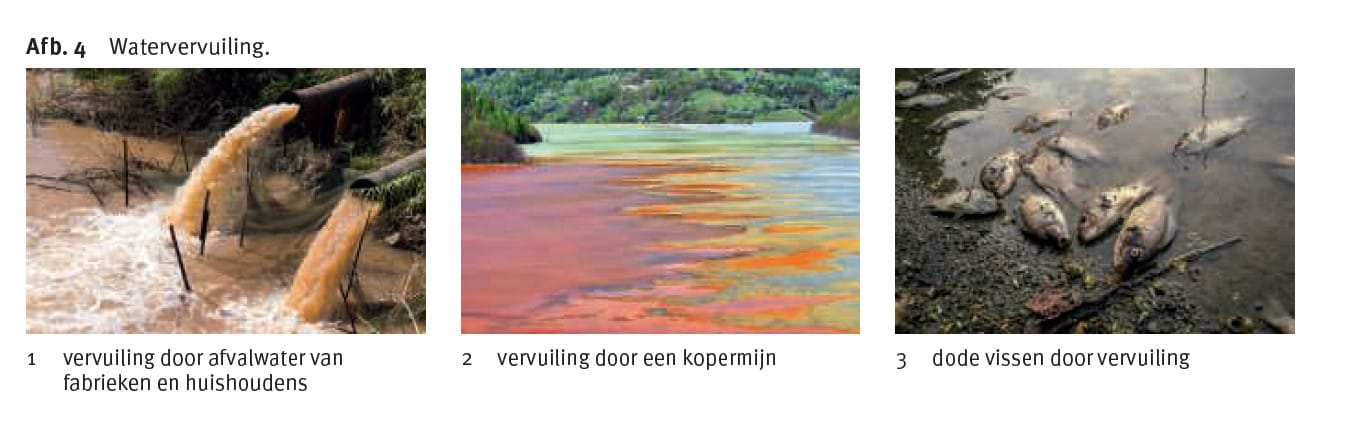

</figureGroup>Series of images (2)
<figureGroup>
<title number="4">Afb. 4</title>
<caption>Watervervuiling.</caption>
<figure>
<img alt="" src="/img/000000_p000-1.jpg" type="photo"/>
<caption>1 vervuiling door afvalwater van fabrieken en huishoudens</caption>
</figure>
<figure>
<img alt="" src="/img/000000_p000-2.jpg" type="photo"/>
<caption>2 vervuiling door een kopermijn</caption>
</figure>
<figure>
<img alt="" src="/img/000000_p000-3.jpg" type="photo"/>
<caption>3 dode vissen door vervuiling</caption>
</figure>
</figureGroup>
